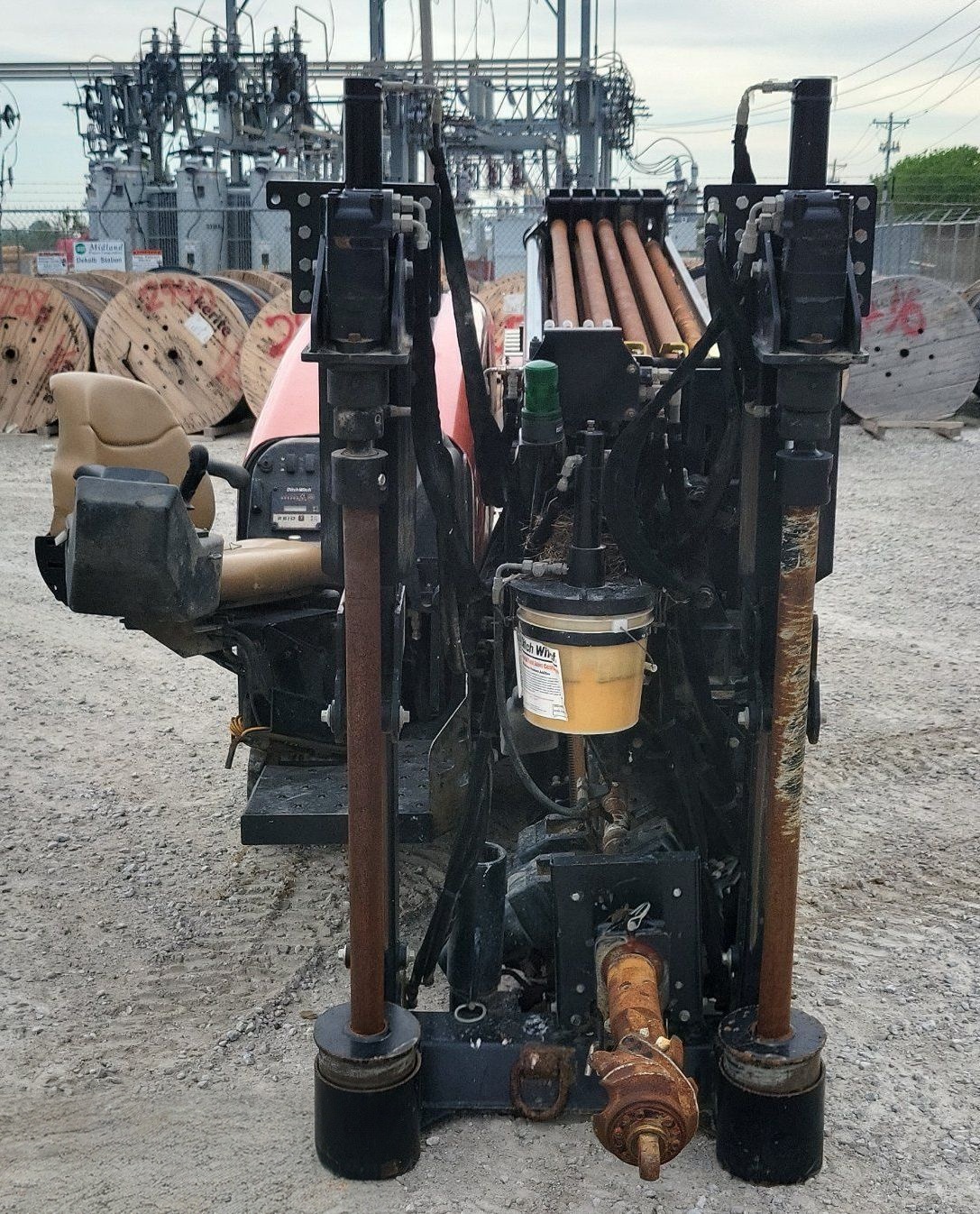

2015 Ditch Witch JT20 Directional Boring Unit With Trailer

This 2015 Ditch Witch JT20 directional boring unit with trailer is a well-equipped, low-hour package built for efficient and reliable horizontal drilling operations. With only 552 hours on the meter, this unit offers an excellent opportunity to acquire a lightly used, fully set up drilling system ready to go to work.

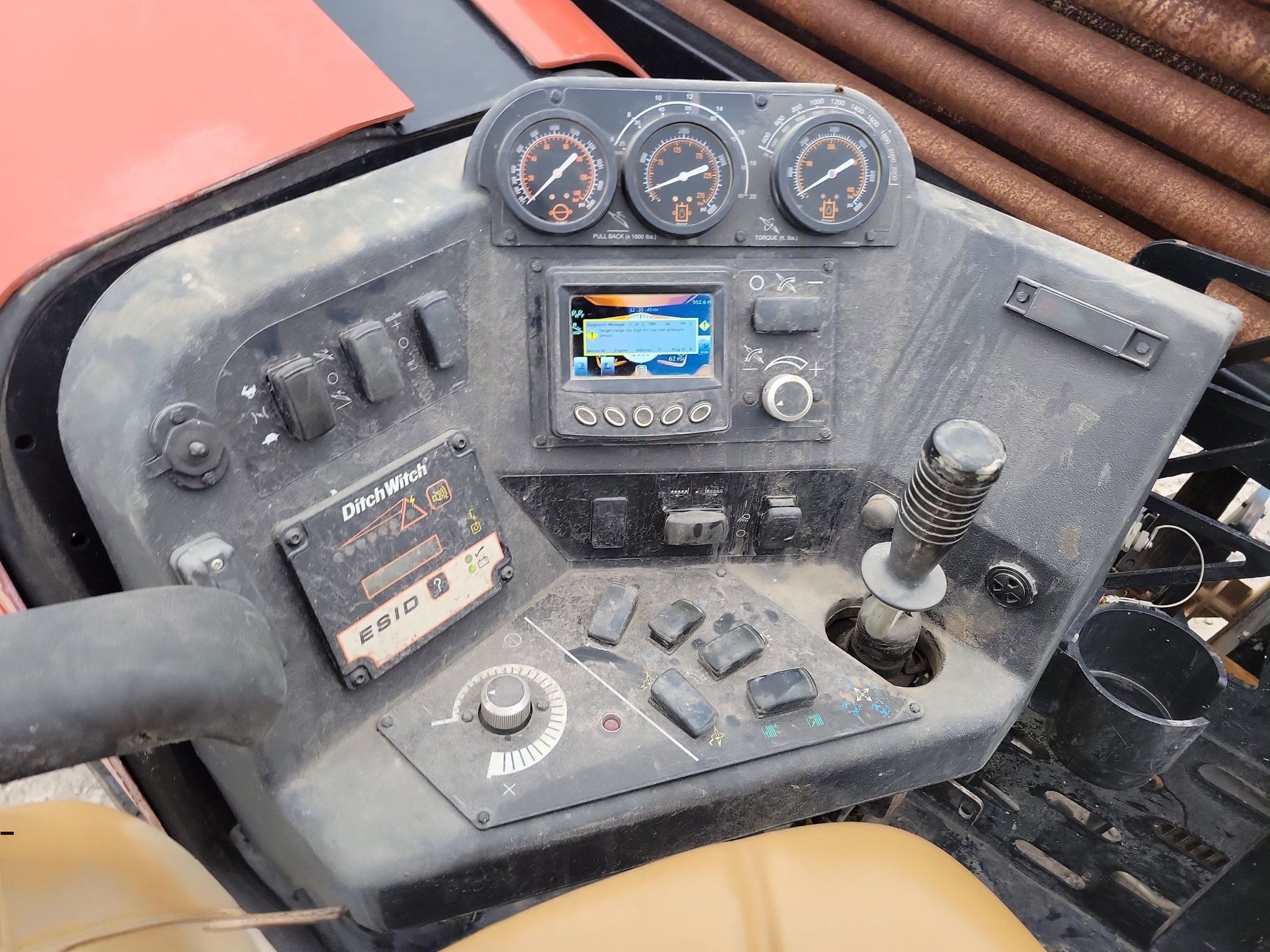

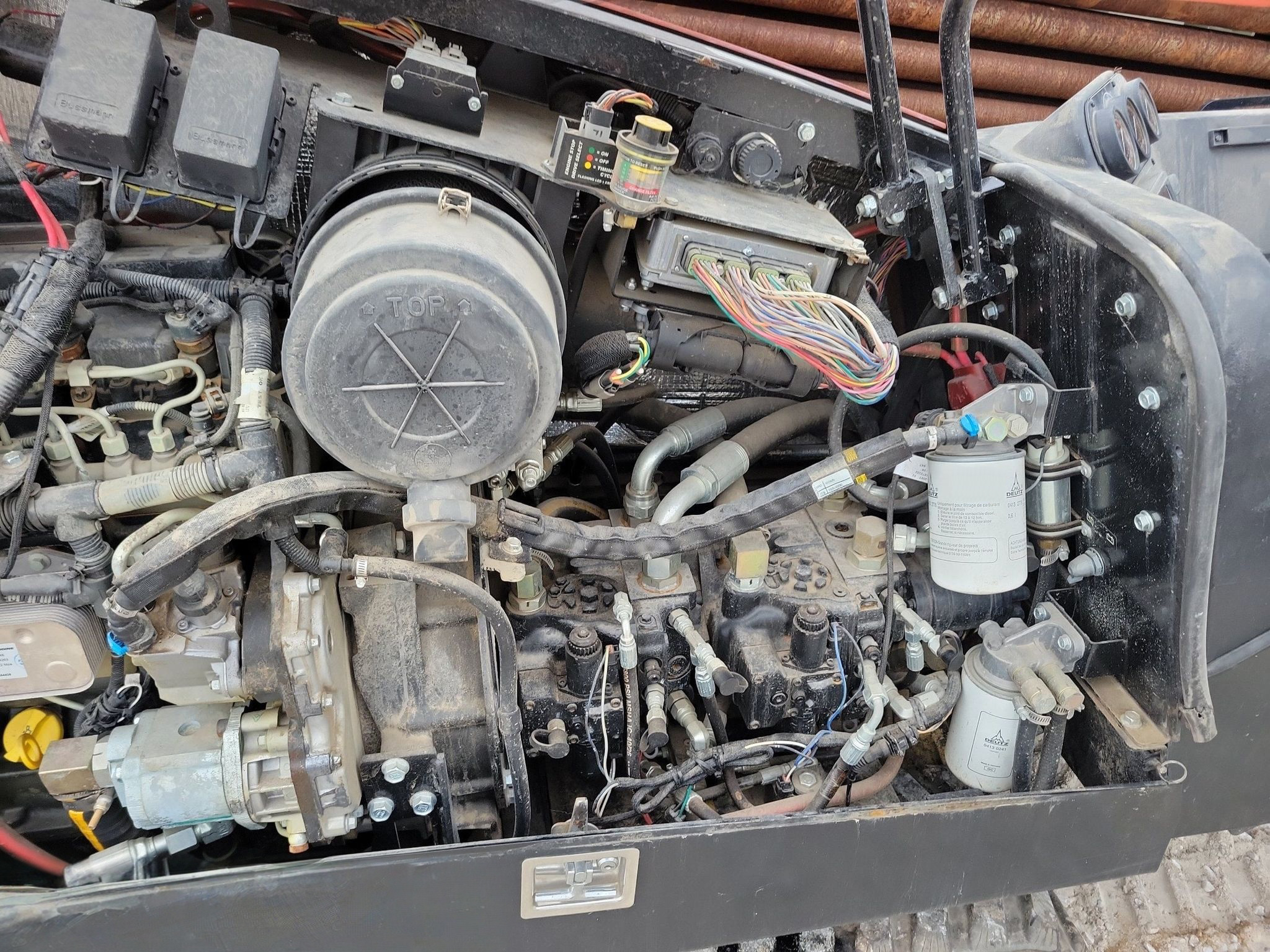

Powered by a dependable Deutz TD2.9L4 4-cylinder diesel engine with 2.9L displacement, it delivers consistent power and fuel efficiency for demanding underground boring applications. The unit is equipped with a tethered ground drive remote, allowing for precise control and improved operator safety during operation.

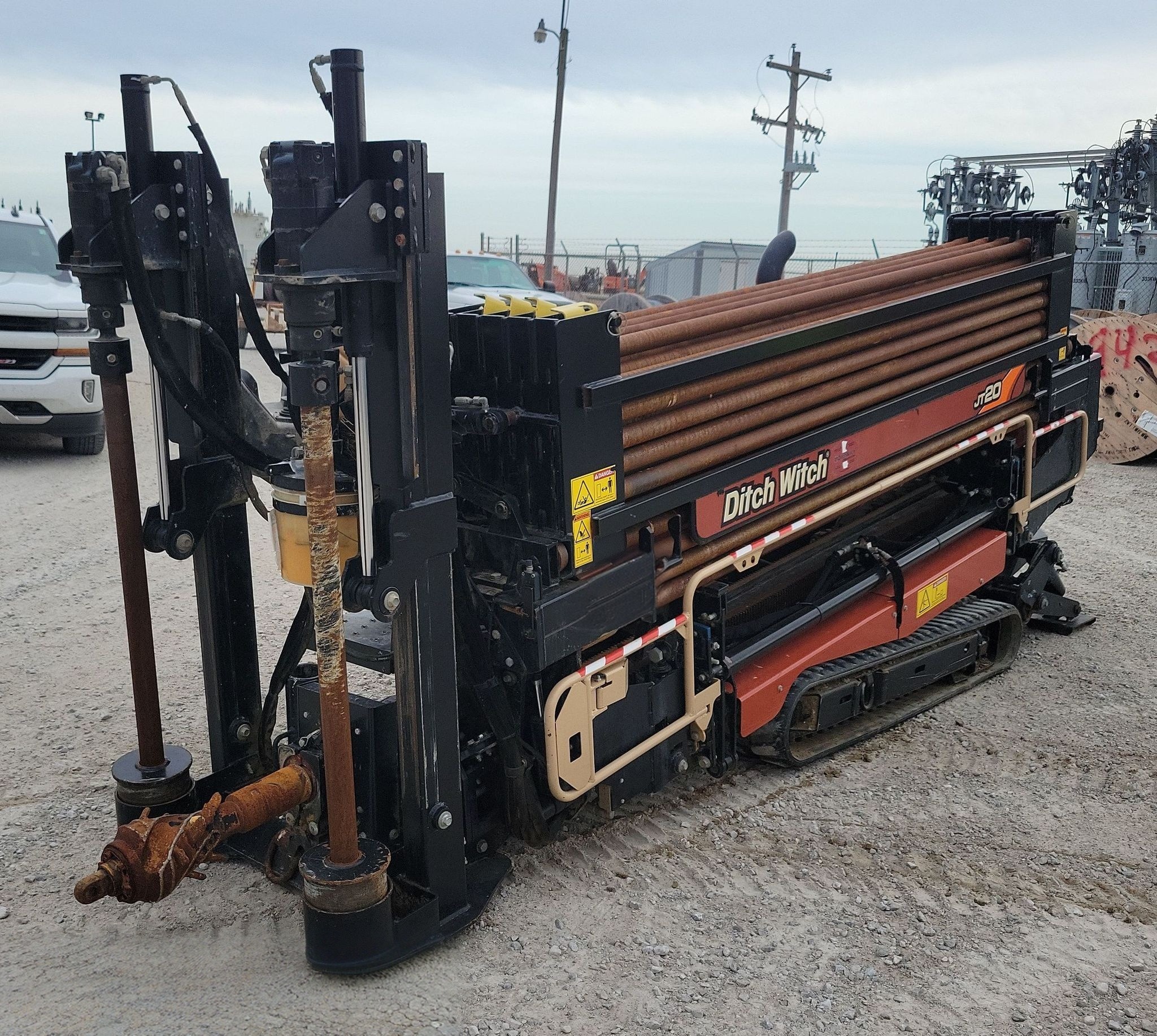

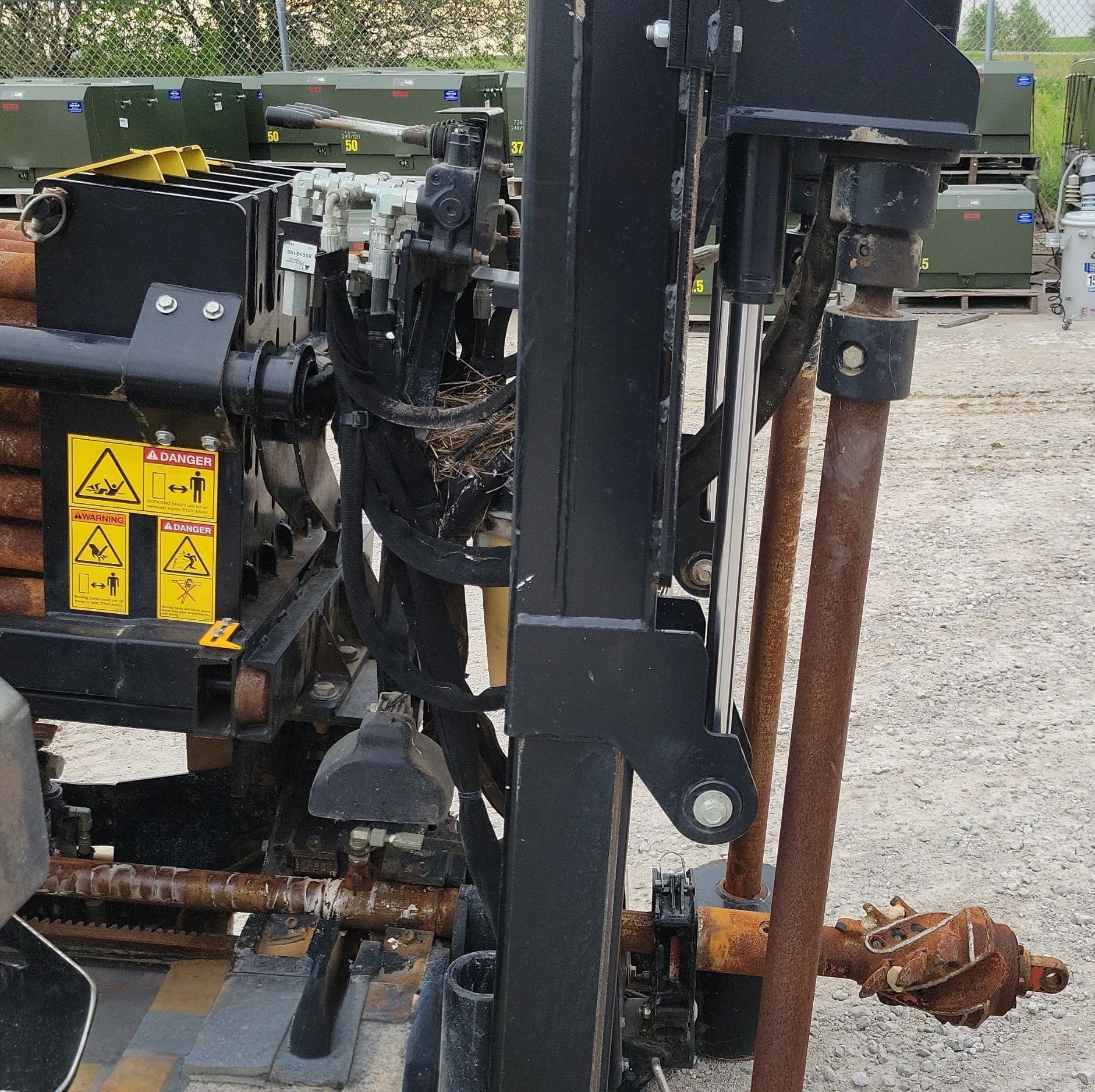

This machine features a complete drilling setup including 43 drill stems on board and an additional 14 rods, each measuring 10 feet in length with a 2-inch diameter. An auto rod loader streamlines operation and increases productivity, while rear hydraulic stabilizers and a hydraulic stake down system provide excellent stability during drilling.

The unit includes an FMC Bean water pump rated at 30 GPM, supporting efficient drilling fluid flow. A 4-inch drill bit and a 7-inch backreamer are included, making this setup ready for a variety of boring applications.

For locating and tracking, the system is equipped with a Ditch Witch TKD locator, along with a receiver and transmitter, ensuring accurate bore tracking and control throughout the job.

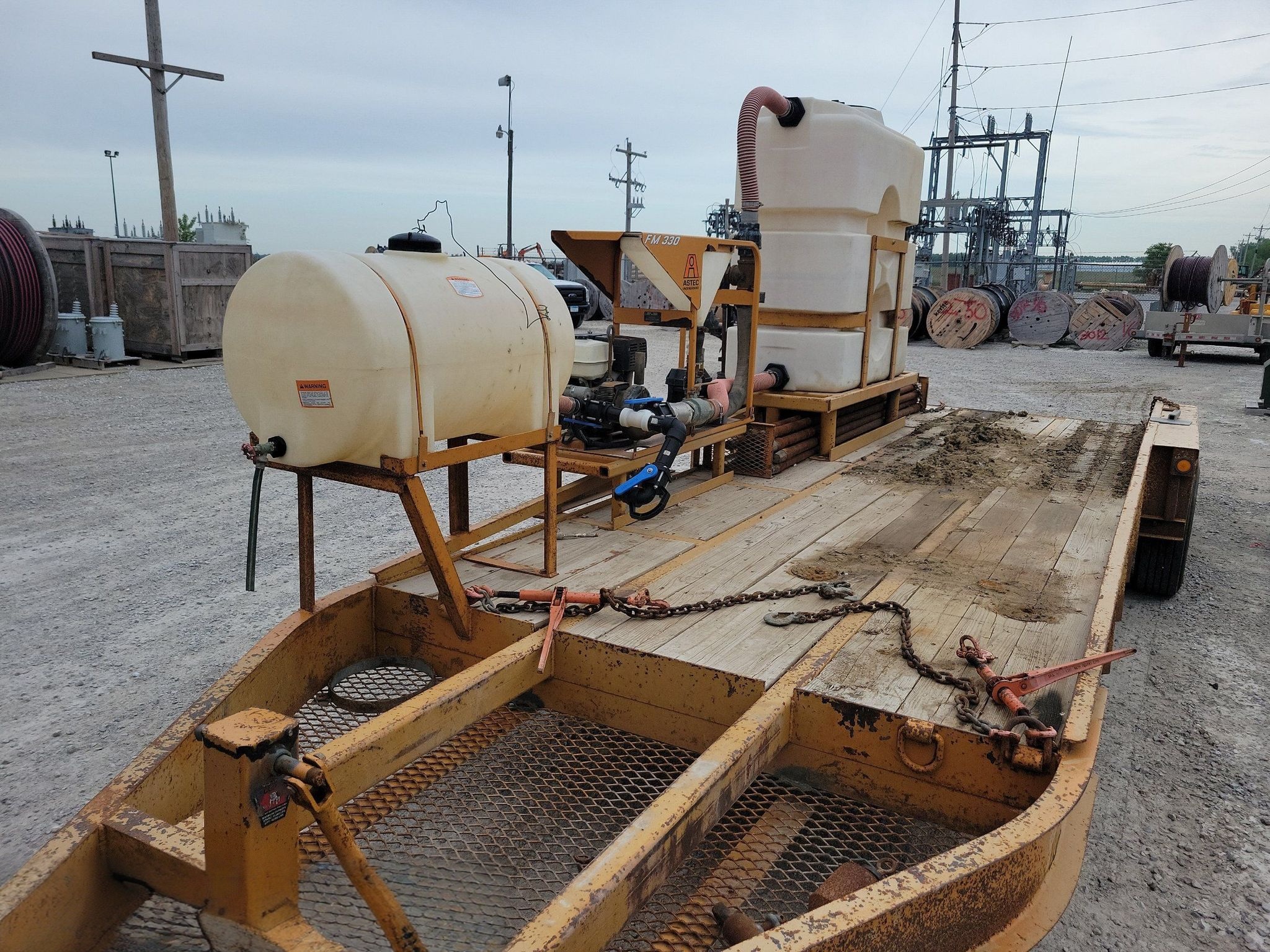

A full fluid mixing system is included, featuring an Astec FM330 with a 400-gallon capacity tank powered by a Honda GX390 engine producing 13 HP, providing reliable mixing and fluid delivery on site.

The unit rides on 11-inch rubber tracks, offering solid traction and mobility across different terrain conditions.

Included in this package is a 2008 Belshe Industries trailer designed for convenient transport and storage. The trailer features a 32-foot overall length, 102-inch width, 20,000 lb GVWR, tandem axles with spring suspension, electric brakes, additional rod storage, and a pintle hitch for secure towing.

Fully equipped, low-hour, and ready for immediate operation, this Ditch Witch JT20 package is a complete drilling solution ideal for contractors seeking performance, efficiency, and value.

Features & Options

• Ground Drive Remote: Tethered
• Water Pump: FMC Bean (30 GPM)
• Auto Rod Loader

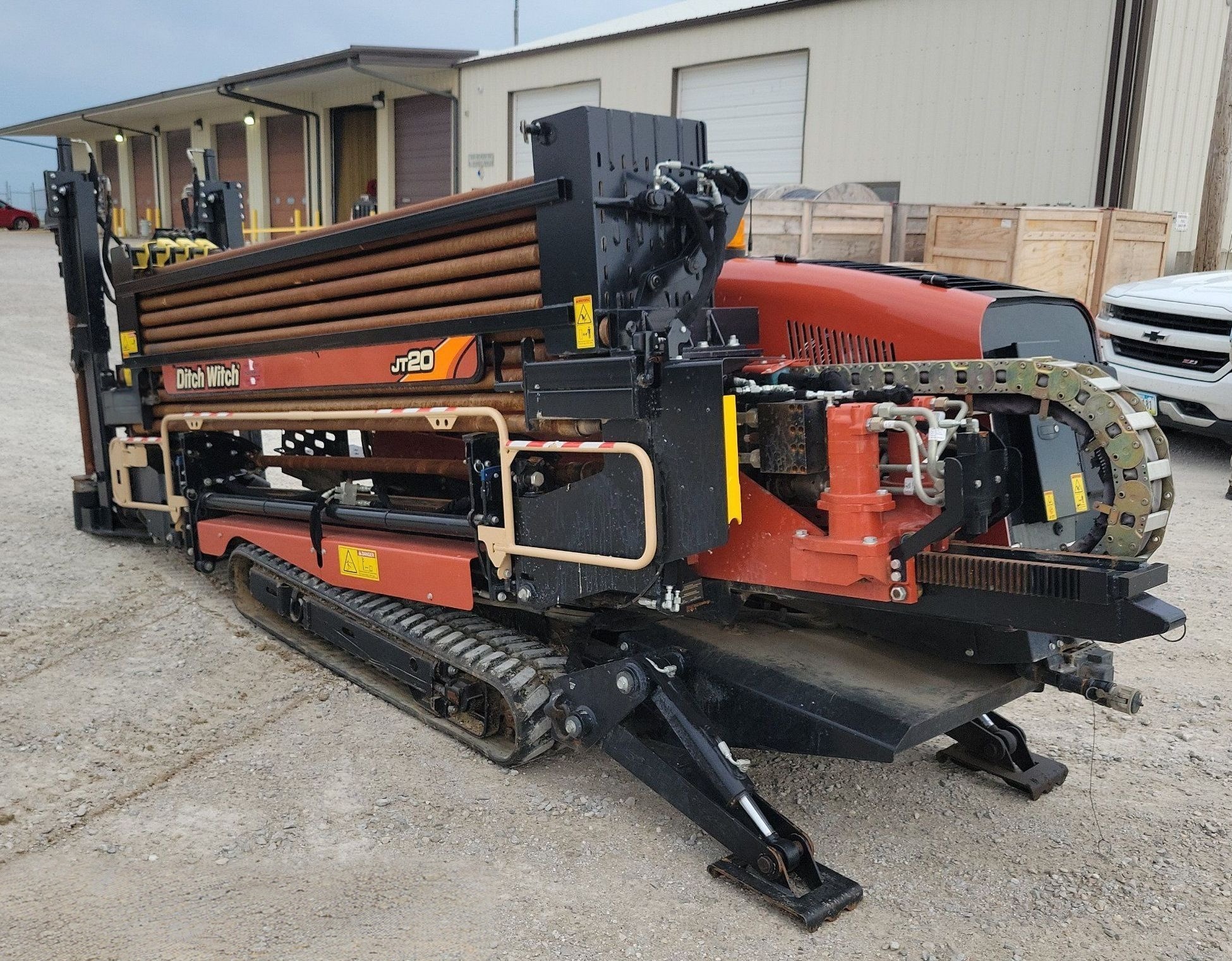

• Rear Hydraulic Stabilizers
• Hydraulic Stake Down
• Fluid Mix System: Astec FM330
• Locator: Ditch Witch TKD
• Trailer

Technical Specifications

• Engine: Deutz TD2.9L4
• Displacement: 2.9L
• Fuel Type: Diesel
• Pump Flow: 30 GPM
• Drill Stem Length: 10'
• Drill Stem Diameter: 2"
• Mix Capacity: 400 gallons
• Track Width: 11"
